Wrlesslab OTA Test System
In addition to the traditional antenna and OTA testing, Desense, multi-communication coexistence, channel simulation, and multi-user scenario application testing are added in the "new" scheme for OTA testing of IoT products.
Contact us Data download
Function & Features
Test the specific functional characteristics of the system
✔ IoT Communication Modes：LTE Cat NB1 (NB-IoT)/Cat-M1 (e-MTC)/Lora/Zigbee/UWB
✔ Test Frequency：400MHz-7.5/11GHz
✔ SISO：TRP/TIS/EIRP/EIS
✔ MIMO 2×2/4×4 throughput test; the test system used to passed CTIA MIMO multi-probe certification; 2D/3D channel model is supported.
✔ Passive Antenna Test, Desense Test, ICS, CA (2CC/3CC/4CC), and communication coexistence test are supported.
✔ The original IoT terminal performance grading software helps users make good use of test results.

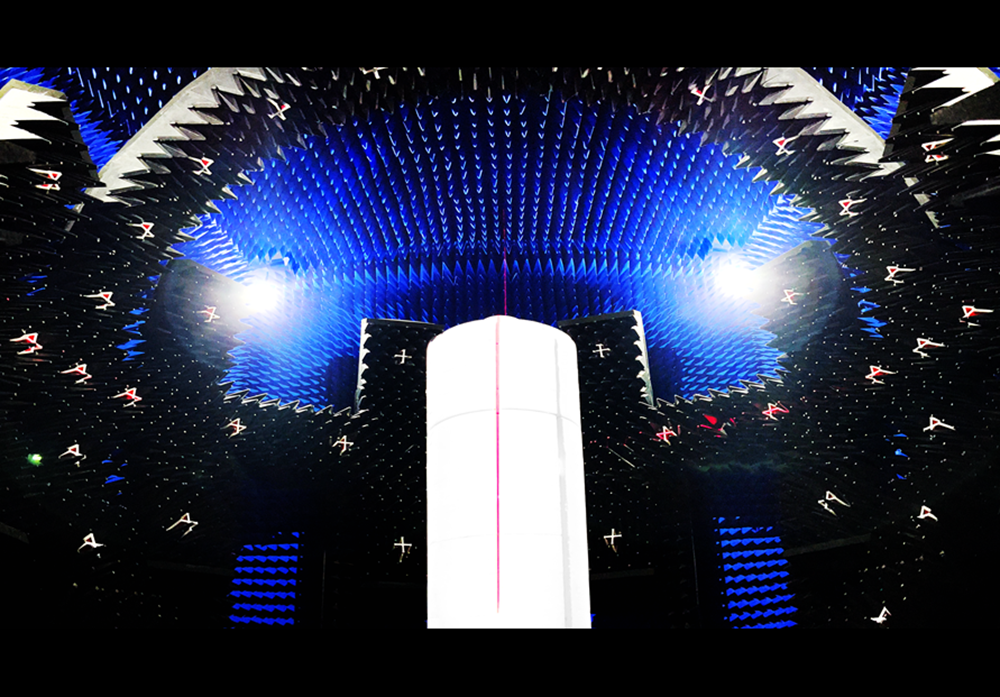

✔ The antenna ring use EPP hard material which is hard to deform, that ensures a long-term stable performance of antennas. The test system uses low insertion loss RF components, such as power amplifier and RF switch. Even in high temperature environment for 24 hours, the data variation of components could be lower than 0.1dB. The regular normalization test also makes sure the insertion loss variation of all 46 test paths in control.
✔ The same size anechoic chamber has a larger test distance. With Hwa-Tech antennas which have better bandwidth, the system could have a test area that 30% larger than the general system.
Function Introduction
✔ Wireless Communication Formats：2G/3G/4G/5G(FR1)/GNSS/A-GNSS/WiFi/Bluetooth✔ IoT Communication Modes：LTE Cat NB1 (NB-IoT)/Cat-M1 (e-MTC)/Lora/Zigbee/UWB
✔ Test Frequency：400MHz-7.5/11GHz
✔ SISO：TRP/TIS/EIRP/EIS
✔ MIMO 2×2/4×4 throughput test; the test system used to passed CTIA MIMO multi-probe certification; 2D/3D channel model is supported.
✔ Passive Antenna Test, Desense Test, ICS, CA (2CC/3CC/4CC), and communication coexistence test are supported.
✔ The original IoT terminal performance grading software helps users make good use of test results.
✔ The antenna ring use EPP hard material which is hard to deform, that ensures a long-term stable performance of antennas. The test system uses low insertion loss RF components, such as power amplifier and RF switch. Even in high temperature environment for 24 hours, the data variation of components could be lower than 0.1dB. The regular normalization test also makes sure the insertion loss variation of all 46 test paths in control.
✔ The same size anechoic chamber has a larger test distance. With Hwa-Tech antennas which have better bandwidth, the system could have a test area that 30% larger than the general system.
✔ With self-dependence intellectual property, the Model B WiFi channel simulator and multi-communication interference generator make the test environment closer to the real environment.
