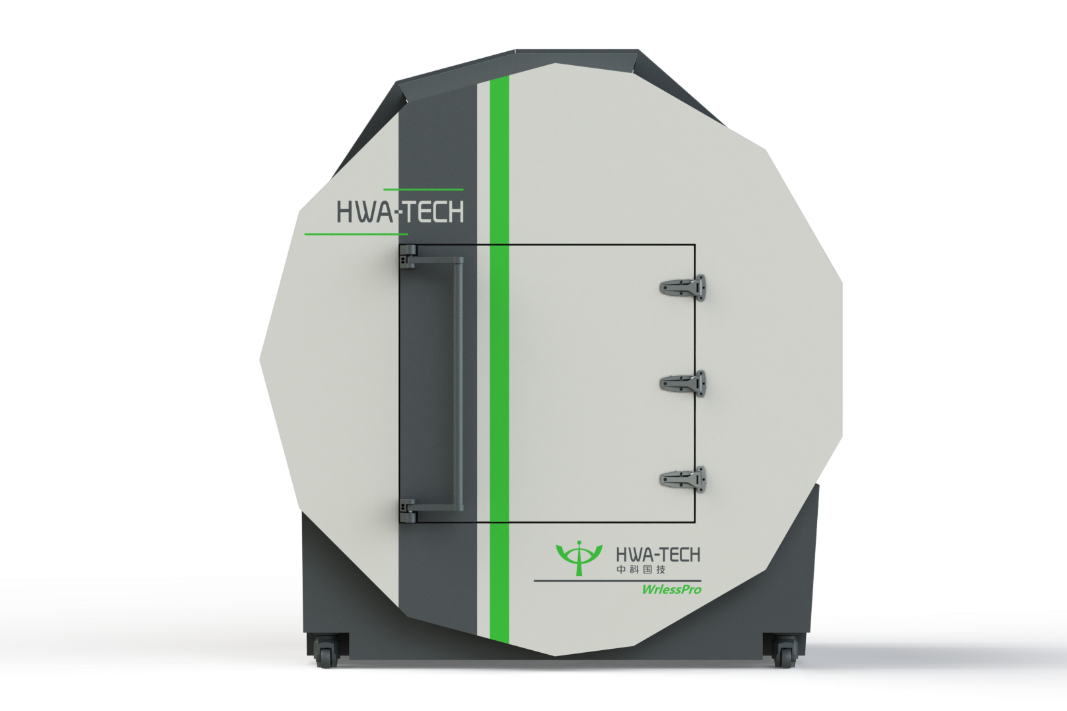

Due to the limited of site size or the office relocated requirement, many enterprises could not build a large chamber to do accurate test. Hwa-Tech WrlessPro could help these enterprises to solve this problem. With a small body, WrlessPro have a similar t
Contact us Data downloadFunction Introduction
✔ Wireless Communication Formats：2G/3G/4G/5G(FR1)/GNSS/A-GNSS/WiFi/Bluetooth
✔ IoT Communication Modes：LTE Cat NB1 (NB-IoT)/Cat-M1 (e-MTC)/Lora/Zigbee/UWB
✔ Test Frequency：600MHz-7.5/11GHz
✔ SISO OTA：TRP/TIS/EIRP/EIS
✔ All-in-one equipment. On-site construction is not need. It could be used after calibration
✔ The Theta angular resolution is 15 degrees which could meet the CTIA test specifications
✔ Support the latest raster reduction and Clenshaw-Curtis TRP/TIS calculation formulas.
✔ Support passive antenna test, Desense test, ICS, CA (2CC/3CC/4CC), communication coexistence test
✔ The antenna ring is made of EPP hard material. It has military-grade RF components and is normalized regularly. The combination of the three ensures the long-term stable use of the system
